Concrete Slab Foundations in Manor, Texas

The City's comprehensive plan describes Manor's ground as rich Blackland Prairie soil, land that went to farming in the nineteenth century and to building in the twentieth because it suits both. The Soil Science Society of America traces the Blackland Prairie along Interstate 35, between a point north of Dallas and one just south of San Antonio, and names Houston Black, a clay found only in Texas, as its signature soil. USDA's reference profile for that series was described in Travis County, east of Manor.

On Houston Black, the same society says, construction is often plagued by cracking as the clay shrinks and swells; hydrated lime is often mixed in to stabilize it, and building foundations need steel reinforcing. The City's plan names the prairie, not a soil series, so which clay lies under a given lot is a question for the soil report rather than an assumption.

Black Taylor Clay in the swell tests

The Transportation Criteria Manual published by the City of Austin cites swell testing on Black Taylor Clay taken from Manor, next to samples from Round Rock, Hutto and Austin, and notes that most structural distress tends to come during the drying cycle. The Bureau of Economic Geology places the Taylor Clay among the younger Upper Cretaceous units east of the Balcones Escarpment.

Local design values for houses

Manor's amendments to the residential code set the local design criteria for houses: a 12-inch frost line, a 90 mph wind speed and a termite risk rated "moderate to heavy." The Code of Ordinances adopts the 2015 International Building Code and the 2015 International Residential Code.

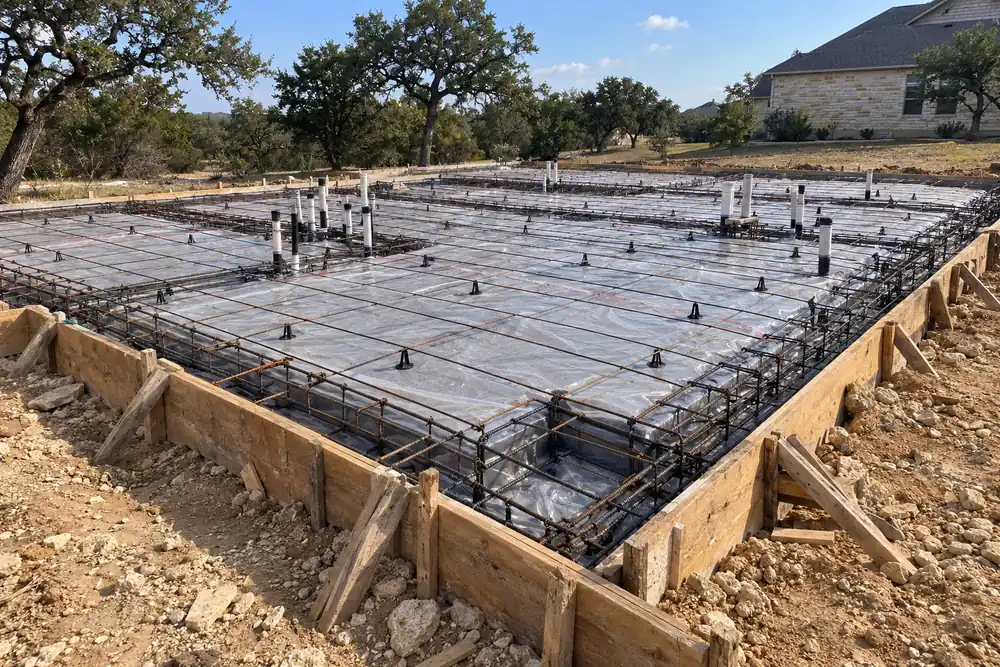

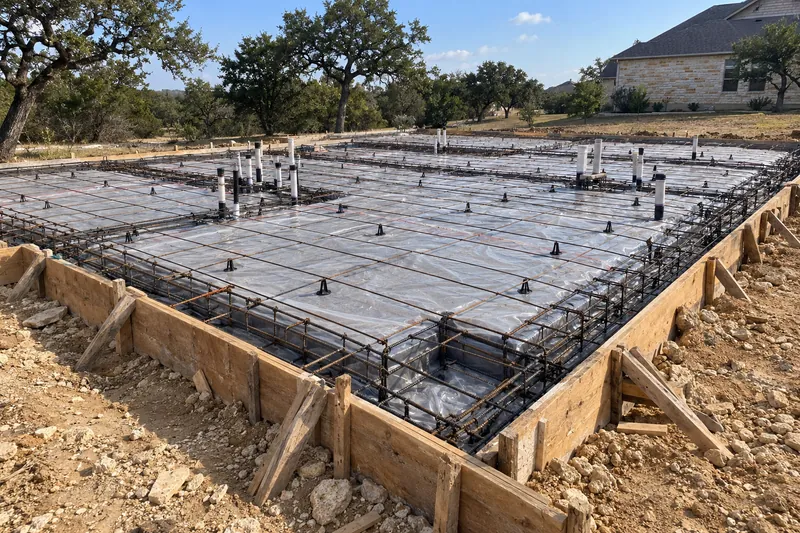

The code makes the foundation inspection the first building inspection, made once the trenches are dug and the forms are up. The City's inspection guidelines put a form survey ahead of it, then a foundation and water line inspection with the forms all set, every piece of reinforcement in place, the beams clean and sized to the plan, the water lines in and protected, and everything ready but the concrete.

The foundation failures the City sees most

The City publishes the problems it finds most often at residential foundation inspections:

• beam depth and width not built to the plan
• poly, the vapor sheeting, not cut out of the bottom of the beams
• no dowels at the garage entrance
• tree roots or standing water in the beams
• wood used to hold up the reinforcing steel

Each of these is easier to settle before the inspector arrives than after. We'll talk through the engineer's beam layout and the steel before the forms go in.

Driveways, approaches and walks

On sidewalks and drive approaches, the same list's usual flatwork failures include reinforcement and control joints that don't follow the code and depths that weren't kept. A permit is needed before a driveway or culvert is installed or altered, except for minor repairs that leave the size and location of the paving unchanged, and any driveway over a ditch needs a culvert. On properties under two acres, driveways must be concrete, asphalt or a similar material, and the residential driveway permit carries the same $50.00 base fee as a foundation permit.

Austin-area averages published in 2026 price a concrete slab foundation at $4,325 to $17,425 and a pier-and-beam foundation at $6,650 to $12,450, with $1,650 to $5,800 for the foundation of a garage. By thickness, a foundation slab of 8 to 10 inches runs $12 to $18 per square foot, and foundations usually call for 4,000 or 5,000 PSI concrete, where small patios and walkways get by on 3,000 to 3,500.

These are published averages, and Manor's permit and inspection fees come on top. We price each slab from its own plan and lot, and the estimate is free.
